EMG 81/85 Set

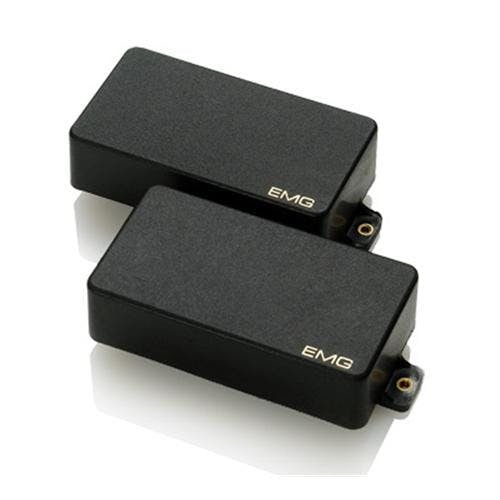

EMG 81/85 Humbucker Set

The EMG 81/85 set is one of the most widely used active humbucker combinations, especially popular in metal, hard rock, and high-gain applications. These pickups use internal preamps powered by a 9V battery, which helps deliver a consistent, noise-free signal with high output and tight articulation.

The EMG 81 is typically installed in the bridge position and is known for its aggressive attack, tight low end, and smooth sustain—ideal for palm-muted riffs and fast lead work. The EMG 85 goes in the neck and offers a warmer, more rounded tone with increased low-end response, making it well-suited for fluid leads and clean passages.

This set includes EMG’s solderless wiring system, which simplifies installation for those upgrading from passive pickups.

---

Fitment Summary

• Pickup Type: Active humbuckers (bridge and neck pair)

• Magnet Type: Ceramic (81), Alnico 5 (85)

• Output: High (preamp-powered)

• Wiring: EMG quick-connect system (solderless)

• Mounting Style: Standard humbucker cavities

• Power Requirement: 9V battery (included or required)

---

️ Installation Notes

These pickups are direct-fit for guitars routed for standard humbuckers. No body mods are required unless your guitar has extremely shallow pickup cavities, as the EMGs are slightly taller than most passives.

Installation uses EMG’s proprietary solderless wiring system, which includes quick-connect cables, output jack, and battery clip. This simplifies the process, especially for players installing active pickups for the first time.

Battery placement varies by guitar—common options include under the control cavity cover or inside a routed compartment if available. The pickups draw minimal power and typically deliver hundreds of hours on a single 9V battery.
