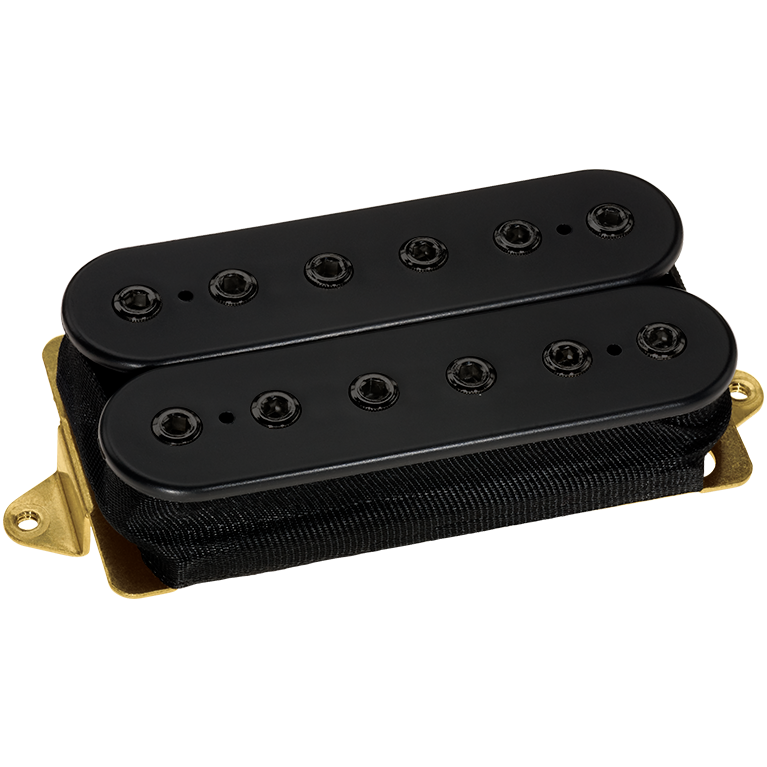

DiMarzio DP151 PAF Pro Humbucker

The DiMarzio PAF Pro (DP151) is a medium-output humbucker designed to balance vintage-style warmth with the clarity and bite needed for high-gain or complex playing styles. Originally developed for players using heavily modded or high-gain amps, it retains enough detail and midrange character to stay articulate in both clean and distorted settings.

The PAF Pro uses Alnico 5 magnets and a moderate DC resistance (around 8.4kΩ), giving it a responsive, balanced sound that suits everything from classic rock to shred. It’s known for its clear attack and ability to cut through dense mixes, especially when used in the neck position—but it’s also a solid option for the bridge, particularly in brighter guitars.

This pickup is a popular swap-in for Ibanez-style guitars, dual-humbucker Strats, or any setup where articulation and midrange presence are priorities.

---

Fitment Summary

• Pickup Type: Humbucker

• Magnet: Alnico 5

• DC Resistance: ~8.4kΩ

• Spacing: Standard humbucker spacing (F-spaced and regular options available)

• Wiring: 4-conductor (coil-splitting compatible)

• Output: Medium

• Mounting: Direct or ring-mounted—standard humbucker cavity required

---

️ Installation Notes

The DP151 fits most guitars routed for standard humbuckers, including Les Paul-style, Super Strats, and many dual-humbucker models. It comes with 4-conductor wiring for flexible setups like coil-splitting or series/parallel switching.

If you’re replacing an existing humbucker, double-check the spacing: use F-spaced for trem-equipped guitars (like Strats or Ibanez RGs) and regular spacing for fixed-bridge or narrower pole-piece guitars.
