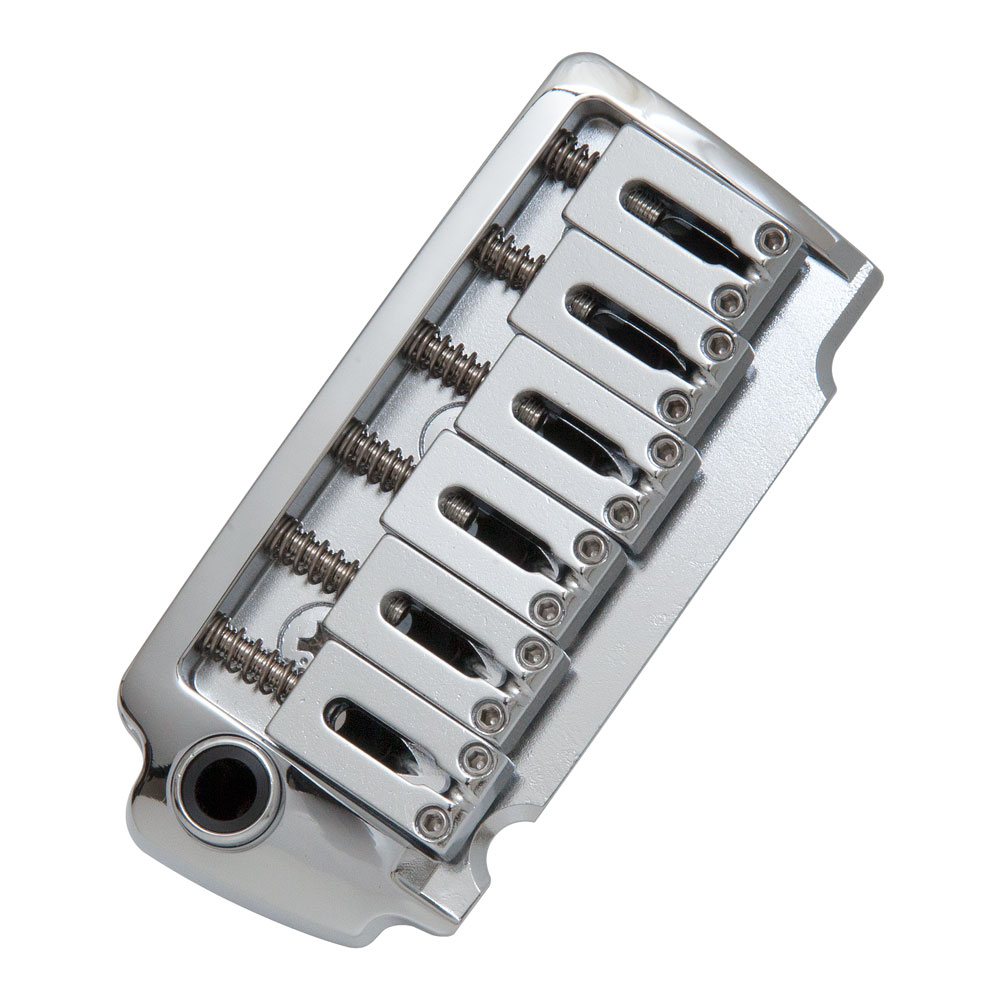

Gotoh EV510TS-FE Tremolo

The Gotoh EV510TS-FE is a premium 2-point tremolo bridge designed for modern Strat-style guitars with standard 10.8mm string spacing. This model features machined steel saddles and a hardened steel block, delivering a bright, articulate tone with strong sustain and clear note definition.

It includes Gotoh’s patented Stud Lock system, which improves tuning stability by eliminating movement at the post/stud interface—ideal for players who use the tremolo regularly but want a non-locking setup. The push-in tremolo arm (A7) offers adjustable tension and smooth feel, and the bridge’s compact baseplate allows compatibility with a range of body routings.

---

Fitment Summary

• Mounting Style: 2-point pivot (74mm post spacing)

• String Spacing: 10.8mm (standard)

• Saddles: Machined steel

• Block: Steel (available in 37mm or 42mm depths)

• Trem Arm: Push-in (Gotoh A7)

• Stud Lock: Yes – enhances tuning stability

---

️ Installation Notes

The EV510TS-FE is a direct replacement for many modern Strat-style guitars that use 2-post tremolo systems, including American Deluxe Strats, Charvels, and other boutique-style builds. It's not compatible with 6-screw vintage trem systems or narrow-spacing bridges without modification.

This bridge is ideal for players who want a responsive, stable tremolo with a bright tone and reliable return-to-pitch. All necessary components—including mounting posts, claw, springs, and trem arm—are included.
