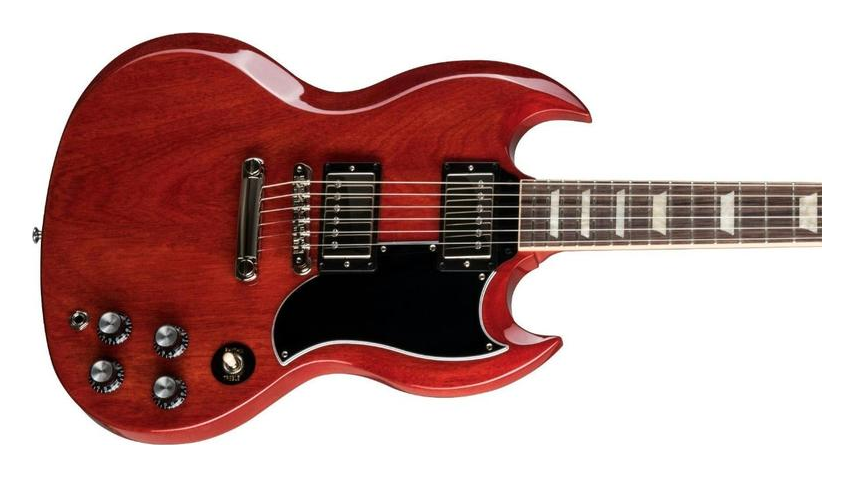

The SG Standard 61 recreates the earliest SG-shaped Les Paul with a slimmer neck than the regular SG Standard and Burstbucker 61R/61T pickups for extra bite.
16 mods reviewed: 11 drop-in, 2 need verification, 3 need modification.
Places we know sell the Gibson SG Standard 61.
Andertons
We may earn a commission if you buy through links on this page. It doesn't change the price you pay. How we make money
The SG Standard 61 recreates the earliest SG-shaped Les Paul with a slimmer neck than the regular SG Standard and Burstbucker 61R/61T pickups for extra bite. It uses an ABR-1 bridge. Some SG '61 reissues ship with a Maestro Vibrola tailpiece instead of a plain stopbar, and this hasn't been confirmed for this specific listing, so check which tailpiece is actually fitted before assuming standard stopbar parts apply.
Tailpiece
Stopbar
Neck mounting
Set neck (glued)
String spacing
52mm (2.05")
Scale length
24.75" (629mm)
Tuner hole size
10mm (25/64")
Nut width
43mm (1.693")
Not published by Gibson: bridge mounting spacing. Measure this before buying a bridge.
Matches your guitar's ABR-1 bridge exactly. Drops into the existing saddle slots, no need to replace the whole bridge.
Saddle-only swap matched to this guitar's confirmed ABR-1 Tune-o-Matic bridge, per Graph Tech's own bridge-stamp fitment guide (PQ-8400-00). Not a universal TOM saddle, this SKU is specific to true ABR-1 spec bridges.
See current price at Amazon
View at Amazon
Purpose-built as a locking version of this guitar's factory ABR-1 bridge. Locking studs mean it will not fall out when you change strings.
TonePros markets the AVR2 specifically as their ABR-1/vintage-spec locking retrofit, matching this guitar's factory ABR-1 bridge.
See current price at Amazon
View at AmazonThis bridge uses metric threads, not the inch threads on genuine vintage Gibson hardware. Sources disagree on whether it drops straight in or needs different posts. Worth checking your bridge's thread type before ordering.
Gotoh's GE104B uses M4 metric threaded posts, not the 6-32 inch threads genuine vintage Gibson ABR-1 hardware uses. Retailer listings for this exact bridge genuinely disagree on whether it's a direct fit for post-2017 Gibson ABR-1 guitars: some describe it as a straight drop-in replacement for Gibson or Epiphone ABR-1-style bridges, others explicitly state it is not a direct replacement for Gibson ABR-1 bridges. This guitar's bushing thread type has not been independently confirmed against either claim.
Help confirm this fit
See current price at Reverb
View at Reverb
Built for the wider Nashville-style bridge posts, not the narrower ABR-1 posts this guitar has stock. Expect to need new bushings fitted, not a straight swap.
Nashville-spec bridges are built for wider post spacing and typically a different stud diameter than this guitar's factory ABR-1 posts. Not a straightforward retrofit without reworking the bushings.
Help confirm this fit
See current price at Reverb
View at Reverb
This bridge is built for the Nashville-style bridge mount, not the ABR-1 mount on this guitar. Would need post/bushing changes, not a straight drop-in.
Hipshot's Tone-A-Matic is built for the Nashville/import-style non-vintage TOM mounting, not true inch-thread ABR-1 hardware found on this Gibson. Post spacing and thread differ between the two systems.
Help confirm this fit
Fits the standard humbucker route on this guitar, a straightforward solder-in swap.
Standard passive humbucker route on a mahogany body, matches this pickup's mounting and dimensions.
See current price at Reverb
View at Reverb
Fits the standard humbucker route and mounting on this guitar. A more vintage-voiced alternative to a higher-output pickup. You will need to solder it in.
Standard humbucker footprint, matches the factory 490R/490T route and mounting used across the current SG Standard line. A medium-output, more vintage-leaning alternative to a higher-output pickup like the JB.
Fits the standard humbucker route on this guitar, a straightforward solder-in swap.
Standard passive humbucker route on a mahogany body, matches this set's mounting and dimensions.
£226.25 at Northwest Guitars
Buy direct from Northwest GuitarsFits the standard humbucker route and mounting on this guitar. You will need to solder it in.
Standard humbucker footprint, matches the factory 490R/490T route and mounting used across the current SG Standard line.
£129.99 at Andertons
View at AndertonsThis is an active pickup set that needs a 9V battery inside the guitar and different wiring, a bigger job than a passive pickup swap.
Active pickup set requiring a 9V battery mounted in the guitar and a different wiring scheme than passive pickups. Not just a pickup swap.
Help confirm this fit
Should swap straight into the existing tuner holes, no reaming needed.
Standard Gibson 3+3 footprint, 10mm holes. Open question is which tailpiece is fitted, not the tuners.
See current price at Amazon
View at Amazon
Should swap straight into the existing tuner holes, no reaming needed.
Standard Gibson 3+3 footprint, 10mm holes.
See current price at Amazon
Matches the tuner holes already on this guitar. A straightforward tuner upgrade, no reaming needed.
This guitar's tuner holes are the modern 10mm Rotomatic-standard size used across current Gibson SG models, matching Grover's 102 line directly.
£129.99 at Andertons
View at Andertons
Should swap straight into the existing tuner holes, no reaming needed.
Standard Gibson 3+3 footprint, 10mm holes.
See current price at Amazon
View at AmazonKluson's Revolution uses a screw-in bushing sized for 10mm holes, which is what this guitar has. No reaming needed.
Standard Gibson 3-per-side headstock drilled at 10mm, and Kluson's Revolution threads into a 10mm peghole. The unresolved question on this model is which tailpiece is fitted, which has no bearing on tuner fit.
See current price at Amazon
These are sized for a smaller vintage-style hole than this guitar has stock. You would need separate bushing adapters to take up the gap, not a clean drop-in.
This tuner line is sized for the smaller roughly 8.8mm vintage press-fit hole found on earlier or vintage-spec Gibson models. This guitar's holes are the modern 10mm size, so these would sit loose without bushing adapters sold separately for exactly this mismatch.
Help confirm this fit
See current price at Amazon
View at AmazonIf you have fitted any of these to this Gibson SG Standard 61, tell us what you found and we'll update the data.
