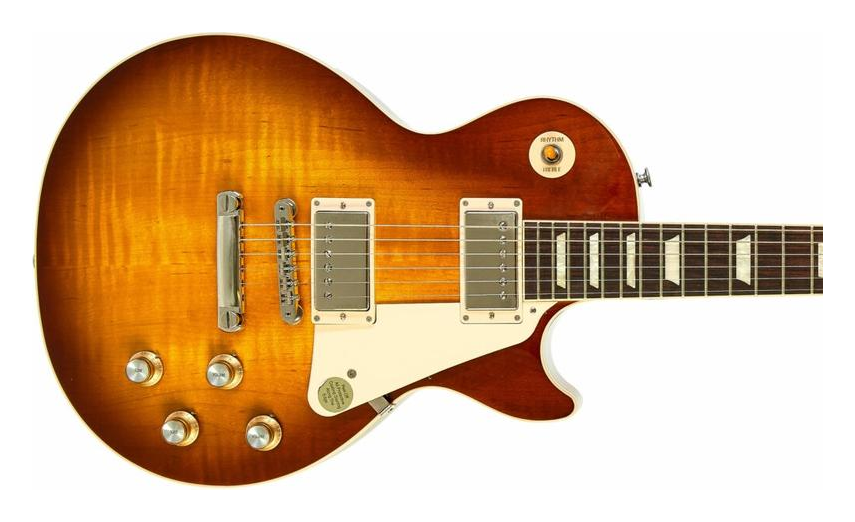

The Les Paul Standard 60s carries an ABR-1 bridge and stopbar, the narrower vintage-correct post spacing rather than the wider Nashville spec found on most current Epiphones, with the slimmer 60s neck profile and Burstbucker 61R/61T pickups distinguishing it from the fatter-necked Standard 50s.
16 mods reviewed: 11 drop-in, 1 needs verification, 3 need modification, 1 not compatible.
Places we know sell the Gibson Les Paul Standard 60s.
Andertons
We may earn a commission if you buy through links on this page. It doesn't change the price you pay. How we make money
The Les Paul Standard 60s carries an ABR-1 bridge and stopbar, the narrower vintage-correct post spacing rather than the wider Nashville spec found on most current Epiphones, with the slimmer 60s neck profile and Burstbucker 61R/61T pickups distinguishing it from the fatter-necked Standard 50s.
Tailpiece
Stopbar
Neck mounting
Set neck (glued)
String spacing
52mm (2.05")
Scale length
24.75" (629mm)
Tuner hole size
10mm (25/64")
Nut width
43mm (1.693")
Not published by Gibson: bridge mounting spacing. Measure this before buying a bridge.
Purpose-built as a locking version of this guitar's factory ABR-1 bridge. Locking studs mean it will not fall out when you change strings.
TonePros markets the AVR2 specifically as their ABR-1/vintage-spec locking retrofit, matching this guitar's factory ABR-1 bridge.
See current price at Amazon
View at AmazonThis bridge uses metric threads, not the inch threads on genuine vintage Gibson hardware. Sources disagree on whether it drops straight in or needs different posts. Worth checking your bridge's thread type before ordering.
Gotoh's GE104B uses M4 metric threaded posts, not the 6-32 inch threads genuine vintage Gibson ABR-1 hardware uses. Retailer listings for this exact bridge genuinely disagree on whether it's a direct fit for post-2017 Gibson ABR-1 guitars: some describe it as a straight drop-in replacement for Gibson or Epiphone ABR-1-style bridges, others explicitly state it is not a direct replacement for Gibson ABR-1 bridges. This guitar's bushing thread type has not been independently confirmed against either claim.
Help confirm this fit
See current price at Reverb
View at Reverb
Built for the wider Nashville-style bridge posts, not the narrower ABR-1 posts this guitar has stock. Expect to need new bushings fitted, not a straight swap.
Nashville-spec bridges are built for wider post spacing and typically a different stud diameter than this guitar's factory ABR-1 posts.
Help confirm this fit
See current price at Reverb
View at Reverb
This bridge is built for the Nashville-style bridge mount, not the ABR-1 mount on this guitar. Would need post/bushing changes, not a straight drop-in.
Hipshot's Tone-A-Matic is built for the Nashville/import-style non-vintage TOM mounting, not true inch-thread ABR-1 hardware found on this Gibson. Post spacing and thread differ between the two systems.
Help confirm this fit
Fits the standard humbucker route and mounting on this guitar. A more vintage-voiced alternative to a higher-output pickup. You will need to solder it in.
Standard humbucker footprint, matches the factory humbucker route and mounting. A medium-output, more vintage-leaning alternative to a higher-output pickup like the JB.
Fits the standard humbucker route on this guitar, a straightforward solder-in swap.
Fixed-bridge mahogany guitar with a standard humbucker route and standard string spacing, matching the non-F-spaced version of this pickup.
£89.99 at Andertons
View at AndertonsFits the standard humbucker route on this guitar, a straightforward solder-in swap.
Standard Gibson-style humbucker route and mounting dimensions, matches this pickup directly.
A Gibson-branded pickup upgrade built for the exact route already in this guitar. Still needs soldering to install.
A genuine Gibson-branded humbucker set built to the same standard route and mounting as the factory pickups already in this guitar.
Fits the standard humbucker route and mounting on this guitar. You will need to solder it in.
Standard humbucker footprint, matches the factory humbucker route and mounting.
£129.99 at Andertons
View at AndertonsShould swap straight into the existing tuner holes, no reaming needed.
Standard Gibson 3+3 footprint, 10mm holes.
See current price at Amazon
View at Amazon
Should swap straight into the existing tuner holes, no reaming needed.
Standard Gibson 3+3 footprint, 10mm holes.
See current price at Amazon
Fits the existing 10mm tuner holes on this guitar without any drilling.
The 60s reissue specifically (as distinct from the Standard 50s) is consistently reported across multiple sources as shipping with modern Grover-style tuners on 10mm holes with screw-in bushings, confirmed by several My Les Paul Forum threads discussing this reissue by name. Not a genuine source conflict, the earlier hedge here was inaccurate.
£129.99 at Andertons
View at Andertons
Should swap straight into the existing tuner holes, no reaming needed.
Standard Gibson 3+3 footprint, 10mm holes.
See current price at Amazon
View at AmazonKluson's Revolution uses a screw-in bushing sized for 10mm holes, which is what this guitar has. No reaming needed.
Standard Gibson 3-per-side headstock drilled at 10mm. Kluson's Revolution uses a screw-in hex bushing built for a 10mm peghole, so it threads into the existing holes.
See current price at Amazon
This guitar's tuner holes are the larger modern size, not the smaller vintage size this tuner is built for. It will sit loose without an adapter, not a straightforward swap.
The 60s reissue specifically ships with modern Grover-style 10mm tuner holes with screw-in bushings, not the vintage-style 8.8mm press-fit holes this product is built for. A vintage-post tuner in an oversized 10mm hole would sit loose rather than seat properly, the reverse of the usual vintage-to-modern reaming problem, and needs a bushing adapter or hole-filling rather than being a simple swap.
Help confirm this fit
See current price at Amazon
View at AmazonIf you have fitted any of these to this Gibson Les Paul Standard 60s, tell us what you found and we'll update the data.
