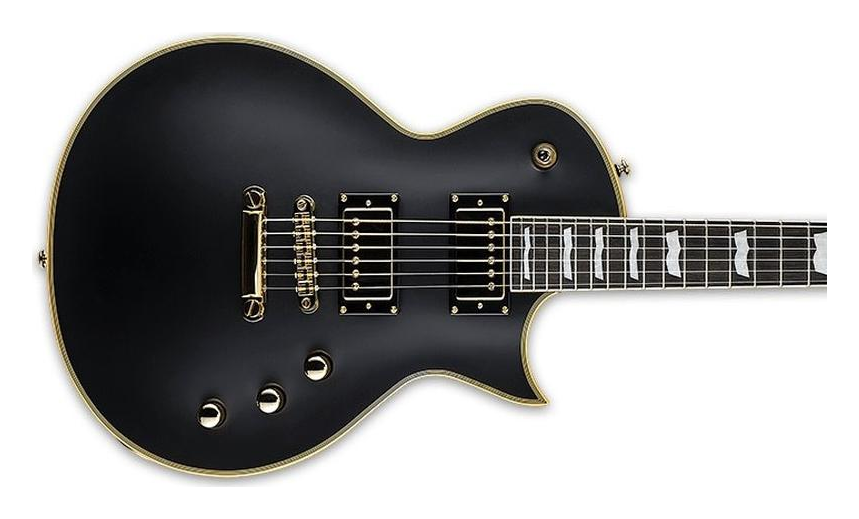

The LTD EC-1000 is ESP's affordable take on the classic single-cut shape, but with genuinely upgraded stock hardware, active EMG pickups and a TonePros locking bridge and tailpiece rather than a standard unlocked Tune-O-Matic.
18 mods reviewed: 3 drop-in, 10 need verification, 5 need modification.
Places we know sell the ESP LTD EC-1000.
Andertons
The LTD EC-1000 is ESP's affordable take on the classic single-cut shape, but with genuinely upgraded stock hardware, active EMG pickups and a TonePros locking bridge and tailpiece rather than a standard unlocked Tune-O-Matic. The bridge itself is already aftermarket-grade from the factory, a real selling point, though whether the post spacing follows ABR-1 or Nashville convention hasn't been confirmed, so check before assuming either standard replacement bridge family fits. Active EMGs mean a passive pickup swap requires a full rewire and battery cavity.
Tailpiece
Stopbar (integrated with TOM bridge)
Neck mounting
Set neck (glued)
Scale length
24.75" (629mm)
Tuner hole size
10mm (25/64")
Nut width
42mm (1.654")
Not published by ESP: string spacing and bridge mounting spacing. Measure these before buying a bridge.
Ships with active EMG 81/60 pickups, meaning a 9V battery cavity and active wiring are already built in. Swapping to another active EMG set is a straightforward like-for-like swap, but switching to passive pickups means removing the active wiring and battery box and rewiring for passive electronics, not just a pickup change.
We may earn a commission if you buy through links on this page. It doesn't change the price you pay. How we make money
Purpose-built for ESP LTD-style metric bridge posts. A more confident fit than the Gibson-spec options.
This bridge is built specifically for metric import guitars including ESP LTD, with 8mm posts and 74mm post spacing confirmed by the manufacturer to fit this stud pattern, a stronger match than the generic Gibson-spec repro parts also listed here.
See current price at Amazon
View at Amazon
A Nashville-spec bridge option, but ESP's exact stud spec on this model has not been confirmed to match. Measure before ordering.
This guitar ships with a TonePros locking Tune-O-Matic. ESP typically uses its own metric stud spec, which has not been independently confirmed to match this Gibson-spec Nashville retrofit part.
Help confirm this fit
See current price at Reverb
View at ReverbSaddle sets for Tune-o-matic bridges are matched to the specific bridge, and we have not confirmed which one fits this guitar yet. Check the stamp on the underside of your bridge, or hold off until we have, before buying.
Graph Tech TUSQ saddle sets are matched to a specific bridge stamp, not universal across Tune-o-Matic bridges (confirmed via Graph Tech's own fitment guide). This guitar's exact bridge stamp has not been checked against Graph Tech's fitment chart, so the correct SKU is not yet confirmed. Graph Tech sell stamp-matched saddle SKUs rather than one universal set. Two separate things are unresolved on this guitar. It may carry a TonePros-branded bridge, which uses its own locking saddle screws, and whether standard TUSQ saddles work with that locking mechanism at all is unclear. The bridge stamp itself has also not been identified. Until both are settled there is no confident SKU to recommend here.
Help confirm this fit
This guitar's stock bridge is already a locking Tune-O-Matic, but whether it uses ABR-1 or Nashville spacing has not been confirmed. Check post spacing before ordering.
Guitar ships with a TonePros locking Tune-O-Matic from the factory, but whether the post spacing follows ABR-1 or Nashville convention has not been confirmed for this model.
Help confirm this fit
See current price at Amazon
View at Amazon
A vintage-spec bridge option, but ESP's exact stud spec on this model has not been confirmed to match. Measure before ordering.
This guitar ships with a TonePros locking Tune-O-Matic. ESP typically uses its own metric stud spec, which has not been independently confirmed to match this Gibson-spec vintage retrofit part.
Help confirm this fit
See current price at Amazon
View at AmazonSince this guitar already has active EMG pickups and a battery box built in, swapping to this set reuses what is already there.
This guitar already ships with active EMG pickups, a 9V battery cavity and active wiring, so swapping to another EMG active set reuses the existing wiring and cavity.
See current price at Amazon
View at AmazonThis guitar already has a battery cavity for its stock active pickups, which helps, and both brands use 25k pots. Fluence wants audio taper pots though, so some of the controls may need swapping. We have not confirmed whether the existing wiring can be reused.
Guitar already ships active with EMG pickups on a standard humbucker route, so a 9-volt battery cavity already exists, a real advantage over installing this in a passive guitar. EMG and Fluence both use 25k pots, so the volume pots may already suit, but Fishman specifies audio taper pots and EMG tone pots and their wiring can differ, so some of the controls may need swapping. Fishman supplies a harness and pots with the set. Whether the existing wiring can be reused has not been confirmed for this guitar.
Help confirm this fit
A real passive alternative other EC-1000 owners have used, but still means rewiring the guitar and removing the battery box, not a straight pickup swap.
A specific, well documented passive alternative discussed by EC-1000 owners directly, not a generic passive substitute. Still requires removing the stock active EMG wiring and battery box.
Help confirm this fit
See current price at Reverb
View at ReverbA well regarded passive alternative to the stock EMGs, but still means rewiring the guitar and removing the battery box, not a straight pickup swap.
A high output passive alternative frequently recommended against EMG actives for this exact guitar in pickup forums. Still requires removing the stock active EMG wiring and battery box.
Help confirm this fit
This guitar ships with active electronics. Moving to a passive pickup like this one means rewiring the guitar and removing the battery box, more work than a straight pickup swap.
Switching from the stock active EMG wiring to a passive humbucker means removing the active wiring and battery box and rewiring for passive electronics, not just a pickup swap.
Help confirm this fit
£129.99 at Andertons
View at AndertonsA popular passive alternative to the stock EMGs, but still means rewiring the guitar and removing the battery box, not a straight pickup swap.
Standard humbucker footprint, a commonly recommended passive alternative to the stock EMGs, but still requires removing the active wiring and battery box.
Help confirm this fit
£119.99 at Andertons
View at AndertonsThe tuner hole size matches, but this guitar's screw mounting pattern is angled differently from a standard mount.
LTD EC series shares the same Eclipse-body headstock design, nonstandard angled screw mount.
Help confirm this fit
See current price at Amazon
View at Amazon
The tuner hole size matches, but this guitar's screw mounting pattern is angled differently from a standard mount.
LTD EC series shares the same Eclipse-body headstock design, nonstandard angled screw mount.
Help confirm this fit
See current price at Amazon
The tuner hole size matches, but this guitar's screw mounting pattern is angled differently from a standard mount. The screw holes may not line up even if the post itself fits.
The LTD EC series shares the same Eclipse-body headstock design as the E-II Eclipse, where Hipshot's own fitment guidance confirms a nonstandard 45-degree angled screw mount.
Help confirm this fit
£129.99 at Andertons
View at Andertons
The tuner hole size matches, but this guitar's screw mounting pattern is angled differently from a standard mount.
LTD EC series shares the same Eclipse-body headstock design, nonstandard angled screw mount.
Help confirm this fit
See current price at Amazon
View at AmazonThe tuner hole size matches, but this guitar's screw mounting pattern is angled differently from a standard Gibson-style tuner. The screw holes may not line up even if the post itself fits.
The LTD EC series shares the same Eclipse-body headstock design as the E-II Eclipse, where Hipshot's own fitment guidance confirms a nonstandard 45-degree angled screw mount. That mounting risk applies here too.
Help confirm this fit
See current price at Amazon
This guitar's tuner holes are the modern larger size, not the smaller vintage size this tuner is built for. It will sit loose without an adapter.
Guitar's tuner holes are confirmed at 10mm (Guitar Chalk dimensions article), not the vintage-style 8.8mm press-fit holes this Kluson product is built for. Would sit loose without a bushing adapter, not a straightforward swap.
Help confirm this fit
See current price at Amazon
View at AmazonPurpose-built for ESP LTD-style metric mounting posts. Pairs with our metric-spec Gotoh bridge, linked here for compatible parts.
This tailpiece is built specifically for metric import guitars including ESP LTD, with 8mm posts that screw into the same metric body bushings this guitar uses.
See also
If you have fitted any of these to this ESP LTD EC-1000, tell us what you found and we'll update the data.
