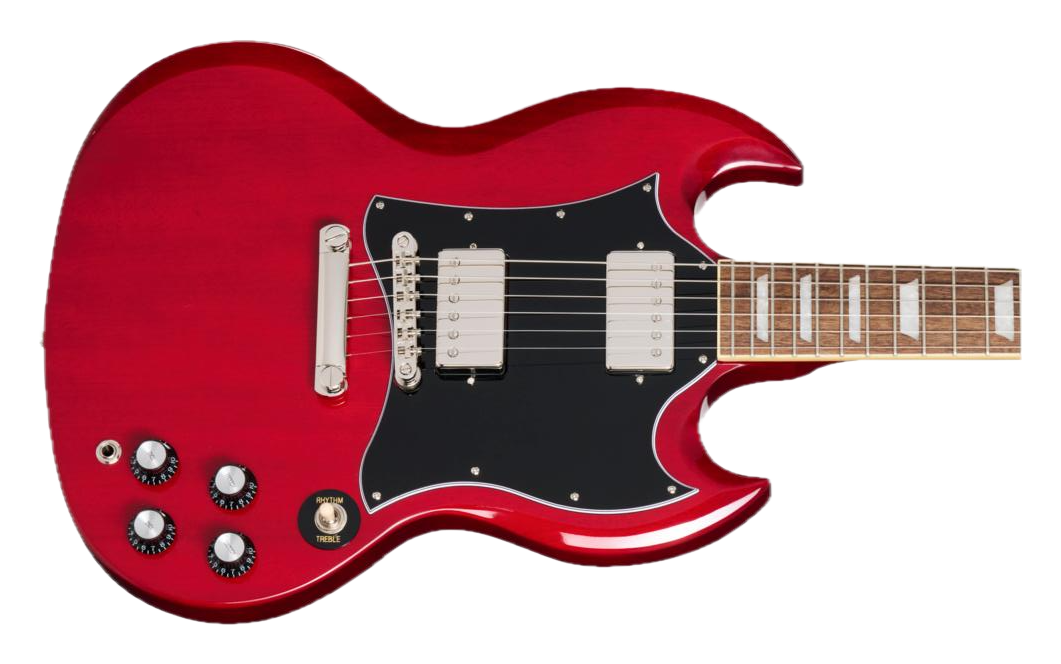

The Epiphone SG Standard uses a LockTone Tune-O-Matic bridge and LockTone Stop Bar tailpiece with Grover Rotomatic tuners at an 18:1 ratio.
14 mods reviewed: 9 drop-in, 2 need verification, 3 need modification.
Places we know sell the Epiphone SG Standard.
Andertons
The Epiphone SG Standard uses a LockTone Tune-O-Matic bridge and LockTone Stop Bar tailpiece with Grover Rotomatic tuners at an 18:1 ratio. One detailed measurement source puts the tuner holes at 10mm, bridge post spacing at 74mm and string spacing at 52mm, consistent with the modern Epiphone standard, though not yet confirmed against an official spec sheet. Fretboard is laurel on most colourways, though rosewood appears on at least one Epiphone-listed finish. ProBucker 2 and 3 pickups sit in a standard humbucker route.
Tailpiece
LockTone Stop Bar
String spacing
52mm (2.05")
Scale length
24.75" (629mm)
Tuner hole size
10mm (25/64")
Not published by Epiphone: bridge mounting spacing. Measure this before buying a bridge.
We may earn a commission if you buy through links on this page. It doesn't change the price you pay. How we make money
Purpose-built for this bridge style. Locking studs mean it won't fall out when you change strings.
TonePros markets the NVR2 specifically as their Nashville-spec locking retrofit. Consistently reported as a straightforward install in Epiphone-specific threads, including on current-production SG models.
See current price at Amazon
View at Amazon
Should fit, but post spacing on Epiphone Nashville-style bridges varies slightly by year and model. Measure your studs before buying if you want a guaranteed fit.
StewMac lists Gotoh's drop-in Nashville replacement at 73.99mm post spacing, but multiple owner caliper measurements on Epiphone LPs range from 73.0mm to 74.4mm depending on model year. This guitar's own bridge post spacing (74mm) comes from a single detailed measurement source, not yet cross-checked against an official spec sheet.
Help confirm this fit
See current price at Amazon
View at AmazonThis swaps only the saddles, so you keep your existing bridge. Graph Tech sell different saddle sets for different bridge stamps though, so check the stamp on the underside of your bridge and order the matching one.
Graph Tech match their TUSQ saddle sets to the stamp on the underside of the bridge rather than selling one universal set, and their own fitment guide lists a distinct SKU per stamp. The Epiphone-spec set, PQ-8633-00, is the correct SKU for a modern Epiphone-style import Tune-o-matic, which is the bridge style on this guitar. What has not been independently confirmed is the exact stamp on this particular model, and that is the detail that decides which set to order.
Help confirm this fit
See current price at Amazon
View at Amazon
This bridge is built for genuine Gibson Nashville posts, not Epiphone's. You'll need to swap in Faber's own conversion posts first, no drilling required if you use their simplest kit.
Faber's own FAQ states Epiphone and other imported guitars use bridge posts that screw into bushings, not original Nashville inserts, and require Faber conversion bridge studs (NSWKIT, BSWKIT, or iNsert) to use any Faber bridge including the ABRN. NSWKIT is a straightforward stud swap with no drilling. BSWKIT is more invasive, needs the body inserts removed and tapped. The plain ABRN alone is not a drop-in for this guitar.
Help confirm this fit
See current price at Reverb
View at Reverb
Fits the standard humbucker route like this guitar's other pickup options. This set leans toward a mellower, more vintage-voiced tone rather than higher output.
Same route and mounting as the Pearly Gates set. Also a commonly recommended Epi swap, leans toward a mellower, more vintage-voiced tone rather than higher output.
See also
See current price at Reverb
View at ReverbThe exact pickups found on the USA Gibson version of this guitar shape. Direct fit, still needs soldering.
This is literally what Gibson ships in its own USA SG Standard; a genuine drop-in for the Epiphone's standard humbucker route, not just a similarly-sized third-party part.
Fits the standard humbucker route. You'll need to solder it in, this isn't a solderless swap.
Standard humbucker footprint and mounting, matches the ProBucker routing shared across current Epiphone HH models. One of the most commonly recommended Epiphone upgrades in Seymour Duncan's own forum threads.
See also
£309.99 at Andertons
View at AndertonsGotoh specify a 10mm bore for these, matching this guitar's holes. A straight locking upgrade, no reaming.
A detailed measurement source puts this guitar's tuner holes at 10mm, and Gotoh specify a 10mm bore for the SG381 housing, so the posts seat in the existing holes.
See current price at Amazon
View at Amazon
Should swap straight into the existing tuner holes, no reaming needed.
A detailed measurement source puts tuner holes at 10mm on this platform.
See current price at Amazon
Matches this guitar's confirmed 10mm tuner holes directly, an easy swap within the same tuner family it already ships with.
This guitar's tuner hole size is confirmed at 10mm, matching this tuner directly.
See also
£129.99 at Andertons
View at Andertons
Should swap straight into the existing tuner holes, no reaming needed.
A detailed measurement source puts tuner holes at 10mm on this platform.
See current price at Amazon
View at AmazonKluson's Revolution uses a screw-in bushing sized for 10mm holes, which is what this guitar has. No reaming needed.
A detailed measurement source puts this guitar's tuner holes at 10mm. Kluson's Revolution uses a screw-in hex bushing built for a 10mm peghole, so it threads into the existing holes.
See current price at Amazon
This tuner is sized for vintage tuner holes, not the modern holes on this guitar. You'll need Gotoh's conversion bushings, sold separately, to fit it.
This tuner is vintage-hole spec (8.73 to 8.8mm), not the modern 10mm hole this guitar actually has. Gotoh sells conversion bushings separately for exactly this situation. Not a direct swap, but not a drilling job either, it is a bushing change.
Help confirm this fit
A real modification, not a drop-in. New holes go in the guitar, best left to someone experienced or a tech.
This guitar ships with a fixed LockTone Stop Bar, not a vibrato. Direct-mounting a Bigsby means new holes in the top.
Help confirm this fit
See current price at Amazon
View at AmazonIf you have fitted any of these to this Epiphone SG Standard, tell us what you found and we'll update the data.
